SGP Laminated Glass Product Details
1. Product Name

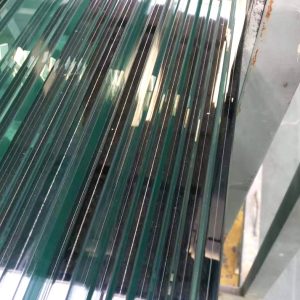

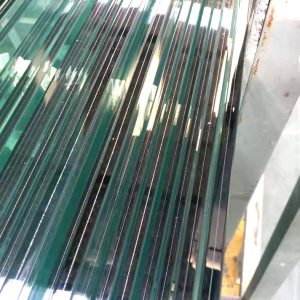

High-Performance SGP Laminated Safety Glass / Structural SGP Laminated Glass
2. Key Features
Superior Strength & Durability – Uses SentryGlas® (SGP) interlayer, which is 5 times stronger and 100 times stiffer than standard PVB interlayers.
Enhanced Safety & Security – High resistance to impact, breakage, and forced entry; retains structural integrity even when broken.
Exceptional Weather & Moisture Resistance – Performs well in high humidity, extreme temperatures, and coastal environments.
Crystal Clear Transparency – Offers excellent optical clarity with minimal yellowing over time.
Hurricane & Explosion Resistance – Designed for applications requiring extra protection against extreme forces.
Lighter & Thinner Design – Higher strength allows for thinner glass panels, reducing overall weight without compromising performance.
3. Specifications
Glass Thickness: 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, etc. (Customizable)
SGP Interlayer Thickness: 0.89mm, 1.52mm, 2.28mm, or customized
Max Size: Up to 13000mm × 3300mm (Jumbo size available)
Glass Type: Clear, Low-Iron, Tinted, Reflective, Frosted, or Patterned
Edge Treatment: Flat polished, beveled, rounded, or custom edges
Processing Options: Heat-Strengthened, Tempered, Insulated, or Decorative Laminated
4. Application Scenarios
Structural Glazing & Facades – High-rise buildings, curtain walls, glass canopies
Security & Safety Applications – Bulletproof, blast-resistant, and anti-theft glazing
Hurricane & Impact-Resistant Glass – Suitable for coastal areas, airports, and government buildings
Architectural & Interior Design – Glass balustrades, partitions, stairs, and floors
Marine & Automotive Applications – Yacht windows, railway & vehicle glazing
5. Customization Options
Size & Thickness: Available in custom sizes based on project requirements
Interlayer Colors: Clear, White, Grey, Blue, Green, or Customized
Coatings Available: Low-E, Solar Control, Anti-Reflective, Self-Cleaning
Laminated & Insulated Options: Can be combined with IGU for energy efficiency
6. Quality Assurance & Certifications
Manufactured with advanced autoclave technology for high-strength lamination
Certified by CE / ISO / SGCC / ASTM / BS6206 for safety and durability
Factory-direct supply ensuring competitive pricing and fast delivery
