Jumbo Size Laminated Glass Product Details
1. Product Name
Jumbo Size Laminated Safety Glass / Extra Large Laminated Glass
2. Key Features
Extra-Large Dimensions – Available in jumbo sizes up to 13000mm × 3300mm, reducing the need for multiple panels and enhancing aesthetics.
High Safety & Strength – Composed of two or more glass sheets bonded with PVB, SGP, or EVA interlayers, ensuring superior impact resistance.
Shatterproof Performance – In case of breakage, glass fragments remain adhered to the interlayer, reducing injury risks.
Superior Sound Insulation – Effectively blocks noise, making it ideal for commercial buildings, airports, and residential areas.
UV Protection – Filters up to 99% of harmful UV rays, preventing interior fading and damage.
Weather & Impact Resistant – Excellent durability under extreme weather conditions and external forces.
3. Specifications
Glass Thickness: 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, etc.
Interlayer Options: PVB / SGP (Clear, Colored, or Soundproofing)
Max Size: Up to 13000mm × 3300mm (custom sizes available)
Glass Type: Clear, Low-Iron, Tinted, Reflective, Frosted, or Patterned
Edge Treatment: Flat polished, beveled, rounded, or custom edges
Processing Options: Tempered, Heat-Strengthened, Insulated, or Decorative Laminated
4. Application Scenarios
Architectural & Façade Glazing – Curtain walls, skylights, and atriums
Commercial & High-Rise Buildings – Office towers, shopping malls, airports
Safety & Security Applications – Banks, government buildings, hurricane-resistant windows
Luxury Interior & Furniture – Glass partitions, staircases, and glass floors
Automotive & Transportation – Train stations, bus shelters, and marine applications
5. Customization Options
Size & Thickness: Customizable to project requirements
Interlayer Colors: Clear, Milky White, Grey, Blue, Green, or Customized
Coatings Available: Low-E, Anti-Reflective, Self-Cleaning, Solar Control
Laminated & Insulated Options: Can be combined with IGU for energy efficiency
6. Quality Assurance & Certifications

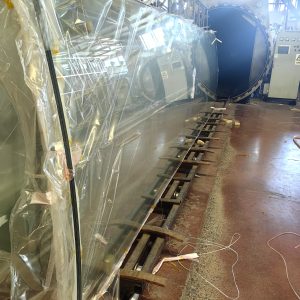

Manufactured using advanced autoclave technology for high-quality lamination
Certified by CE / ISO / SGCC / ASTM / BS6206 for safety and durability
Factory-direct supply ensuring competitive pricing and fast delivery
